My Dear Jeeze, It’s Covered in Rule 30s!

An English Stop

The other day a brand new stop, named “;;Cambridge North”, opened up in Cambridge, United kingdom.Normally this kind of event could be far outdoors my sphere of awareness. (I believe I last required a train to Cambridge in )But a week ago people began delivering me images of the brand new stop, wondering basically could find out the pattern onto it:

Cambridge North train station

And, yes, it will indeed look nearly the same as patterns I’ve spent years studying—that originate from simple programs within the computational world.My first—and still favorite—examples of easy programs are one-dimensional cellular automata such as this:

One-dimensional cellular automata

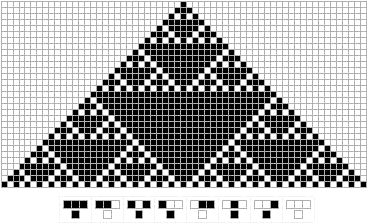

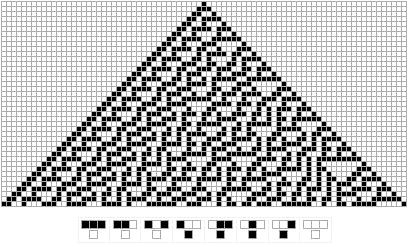

The machine evolves line by line in the top, figuring out the colour of every cell based on the rule underneath.This particular cellular automata I known as “;;rule 182”, since the bit pattern within the rule matches the amount 182 in binary.There are altogether 256 possible cellular automata such as this, which is what these do:

256 possible cellular automata

Most of them show quite simple behavior.But the large surprise I acquired initially when i first ran each one of these cellular automata in early 1980s is the fact that despite the fact that all of the rules are extremely easy to condition, a number of them generate very complex behavior.The first within the list that does that—and still my personal favorite example—is rule 30:

Rule 30

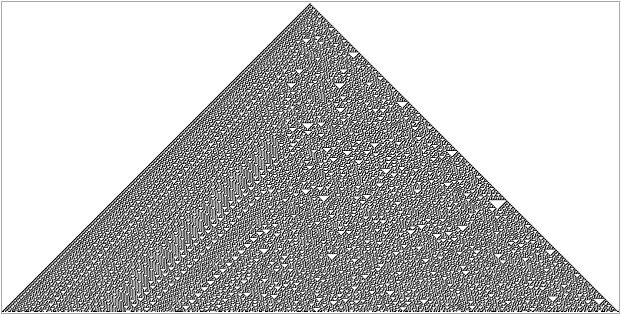

If a person runs it for 400 steps one will get this:

After 400 steps

And, yes, it’s outstanding that beginning in one black cell at the very top, and merely frequently carrying out a simple rule, it’s easy to get all of this complexity.I think it’s really one particualr hugely important phenomenon, that’s central to how complexity will get produced in nature, in addition to the way we can customize the degree of technology.And actually, I believe it’s important enough which i spent greater than a decade writing a 1200-page book (that simply celebrated its 15th anniversary) according to it.

As well as for years I’ve really had rule 30 on my small business card printing:

Business cards

But to the Cambridge North stop.Its pattern is clearly not completely random.But whether it is made with a rule, what sort of rule?Could it’s a cellular automaton?

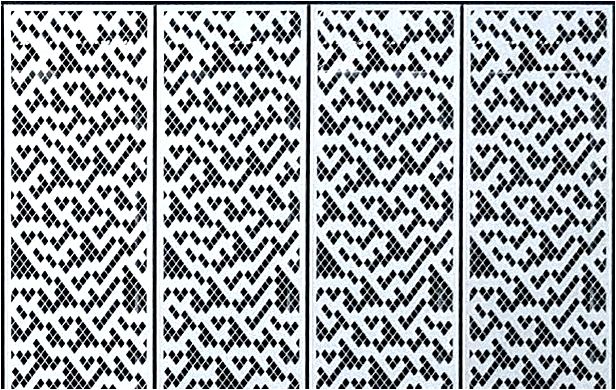

I zoomed in on the photograph from the pattern:

Enlarged pattern

All of a sudden, something appeared awfully familiar: the triangles, the stripes, the L shapes.Wait one minute… it couldn’t really be my personal favorite rule ever, rule 30?

Clearly the pattern is tipped 45° from how I’d usually display a cellular automaton.And you will find black triangles within the photograph, not white-colored ones as with rule 30. But when one black-white-colored inverts the rule (so it’s now rule 135), one will get this:

Black-white inversion of the pattern

And, yes, it’s the standard pattern as with the photograph!But if it is rule 30 (or rule 135) what’s its initial condition?Rule 30 can really be utilized as a cryptosystem—because it’s not easy (possibly even NP complete) to rebuild its initial condition.

But, OK, if it is my personal favorite rule, I wondered if maybe it is also my personal favorite initial condition—a single black cell.And, yes, it’s!The stop pattern comes exactly in the (inverted) right-hands fringe of my personal favorite rule 30 pattern!

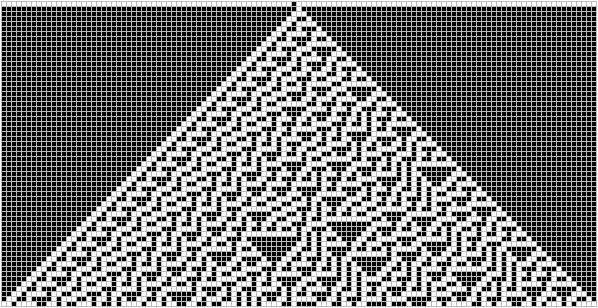

Edge of rule 30

Here’s the Wolfram Language code. First run cellular automaton, then rotate the pattern:

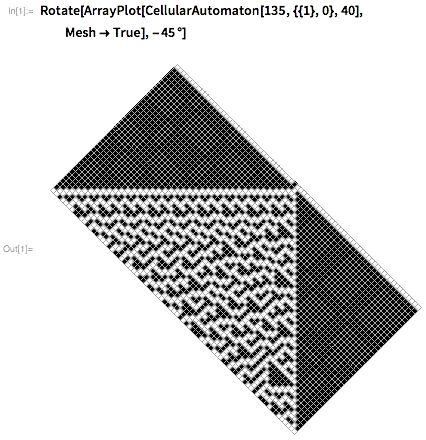

Rotate[ArrayPlot[CellularAutomaton[135, ,,40],Mesh-&gtTrue],-45 Degree]

It’s just a little trickier to drag out exactly the portion of the pattern that’s used. Here’s the code (the PlotRange is exactly what determines negligence the pattern that’s proven):

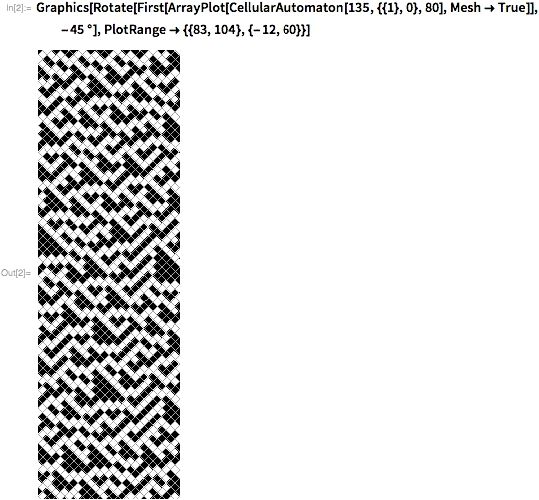

Graphics[Rotate[First[ArrayPlot[CellularAutomaton[135, ,,80],Mesh-&gtTrue]],-45 Degree], PlotRange->,]

OK, where is that this pattern really used in the stop?Everywhere!

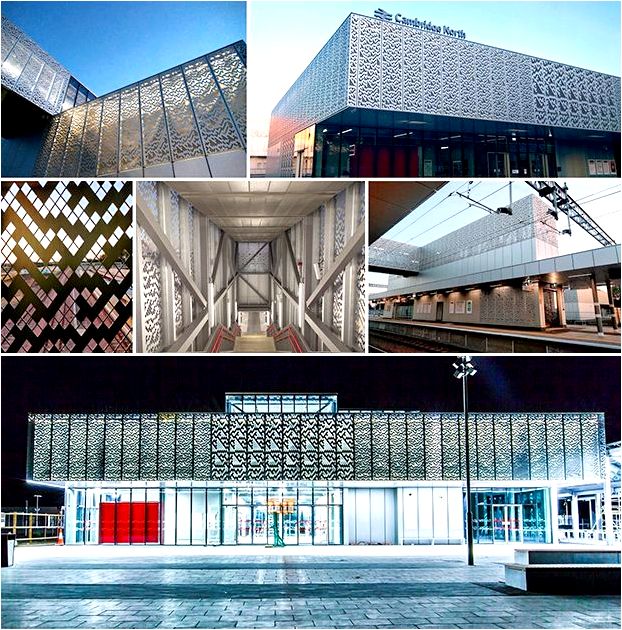

Cambridge North collage

It’s made from perforated aluminum.You can really examine it, similar to a classic latticed window.From inside, the pattern remains-right reversed—so if it is rule 135 from outdoors, it’s rule 149 from the inside.And during the night, the pattern is black-white-colored inverted,because there’s light originating from inside—so in the outdoors it’s “;;rule 135 during the day, and rule 30 at night”.

What exactly are some details concerning the rule 30 pattern?It’s very difficult to rigorously prove things about this (and that’s interesting by itself—and carefully associated with the essential phenomenon of computational irreducibility).But, for instance—like, say, the digits of π—many facets of it appear random.And, for example, black and white-colored squares seem to occur with equal frequency—meaning that in the stop the panels let within 50% from the outdoors light.

If a person examines , it appears that 2 configurations will occur typically with equal frequency.But not things are random.And so, for instance, if a person examines 3×2 blocks of cells, only 24 from the 32 possible ones ever occur.(Maybe many people awaiting trains will discover which blocks are missing…)

Whenever we consider the pattern, our visual system particularly picks the black triangles.And, yes, it appears as though triangles associated with a size can ultimately occur, although with frequency decreasing tremendously with size.

If a person looks carefully in the right-hands fringe of the rule 30 pattern, it’s possible to observe that it repeats.However, the repetition period appears to improve tremendously as you gets into in the edge.

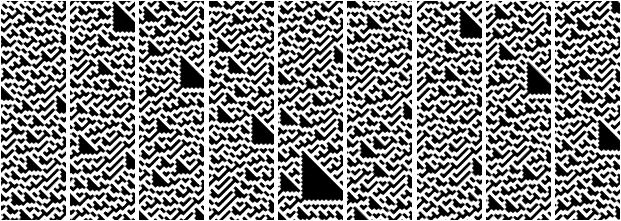

In the stop, there are numerous identical panels.But rule 30 is really an endless supply of new patterns.So what can happen if a person just ongoing the evolution, and made it on successive panels?Here’s the end result.It’s a pity concerning the hint of periodicity around the right-hands edge, and also the big triangular on panel 5 (which can be a security problem in the stop).

Successive panels

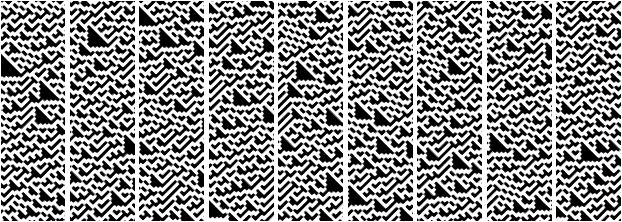

15 more stages in in the edge, there isn’t any hint of this any longer:

Fifteen more steps

How about other initial conditions?If the initial conditions repeat, then same goes with the pattern.But otherwise, to date as you will easily notice, the pattern will appear basically as with just one-cell initial condition.

It’s possible to try other rules too.Here really are a couple of in the same simplest 256-rule set as rule 30:

Simple 256-rule set

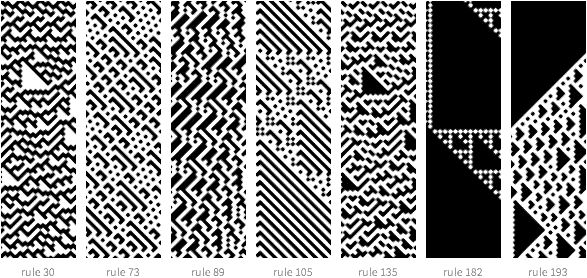

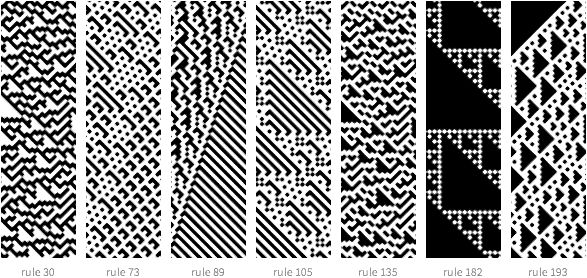

Moving much deeper in the edge the outcomes look quite different (for aficionados, rule 89 is really a transformed form of rule 45, rule 182 of rule 90, and rule 193 of rule 110):

Moving deeper from the edge

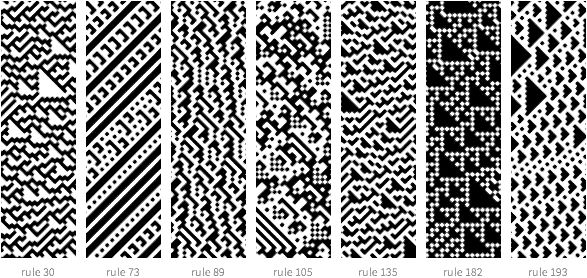

And beginning from random initial conditions, as opposed to a single black cell, things again look different:

Starting from random initial conditions

And listed here are a couple of more rules, began from random initial conditions:

A few more rules

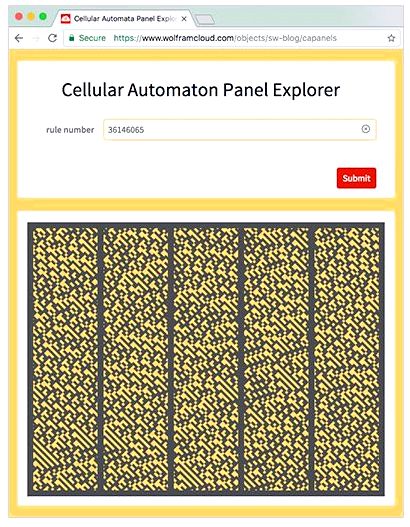

Here’s an internet site (made over a couple of minutes having a small bit of Wolfram Language code) that allows you to experiment (including with bigger rule figures, according to longer-range rules).(And if you wish to explore more systematically, here’s a Wolfram Notebook to test.)

Cellular automaton panel explorer

It’s amazing what’s available within the computational world of possible programs.There’s a vast selection of possible patterns.But it’s awesome the Cambridge North stop uses my all-time favorite discovery within the computational world—rule 30!And it appears great!

The Larger Picture

There’s something strangely enough timeless about algorithmically generated forms.A dodecahedron from ancient Egypt still looks crisp and modern today.As do periodic tilings—or nested forms—even from centuries ago:

Periodic tilings and nested forms

But could one generate more potent forms algorithmically?Before I came across rule 30, I’d always assumed that any type produced by simple rules would always in some way finish up being clearly simple.But rule 30 would be a big shock to my intuition—and from this I recognized that really within the computational world of possible rules, it’s really super easy to obtain wealthy and sophisticated behavior, even from simple underlying rules.

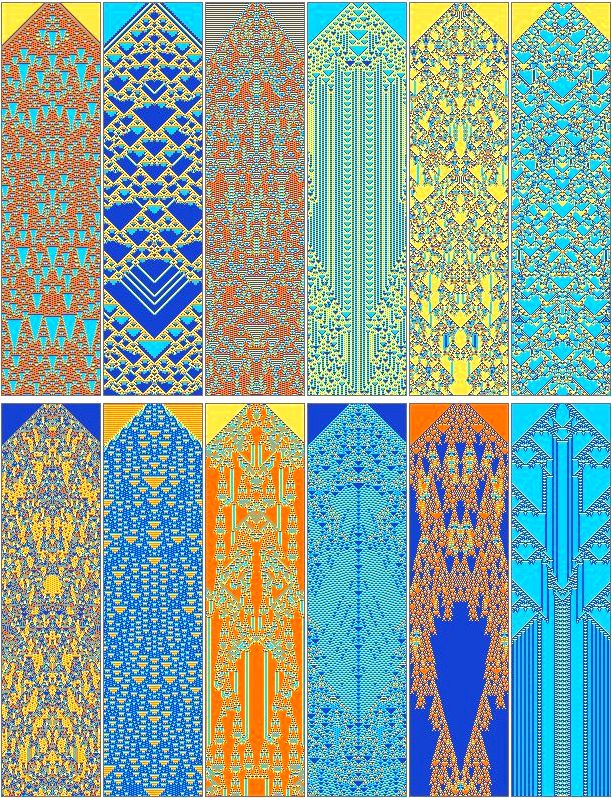

And in addition to this, the patterns which are generated frequently have outstanding visual interest.Here really are a fewproduced by cellular automata (with 3 possible colors for every cell, instead of 2):

Three-color cellular automata

There’s an incredible diversity of forms.And, yes, they’re frequently complicated.But because they’re according to simple underlying rules, they also have a particular logic for them: in this way all of them informs an absolute “;;algorithmic story”.

One factor that’s notable about forms we have seen within the computational world is they frequently look nearly the same as forms we have seen anyway.And I do not think that’s a coincidence.Instead, I believe what’s happening is the fact that rules within the computational world capture the essence of laws and regulations that govern plenty of systems anyway—whether in physics, biology or wherever.And maybe there is a certain familiarity or comfort connected with forms within the computational world which comes using their resemblance of forms we’re accustomed to anyway.

But is exactly what we achieve with a home computational world art?When we choose something similar to rule 30 for the purpose, what we’re doing is conceptually similar to photography: we’re not allowing the underlying forms, but we’re choosing the ones we opt for.

Within the computational world, though, we are able to become more systematic.Given some aesthetic qualifying criterion, we are able to instantly sort through possibly even millions or vast amounts of possible rules to locate optimal ones: in this way instantly “;;discovering art” within the computational world.

We did a test about this for music in 2007: WolframTones.And what’s outstanding is the fact that even by sampling fairly small figures of rules (cellular automata, in fact), we’re capable of producing a variety of interesting short bits of music—that frequently appear remarkably “;;creative” and “;;inventive”.

From the practical perspective, automatic discovery within the computational world is essential since it enables for mass personalization.It makes it simple to become “;;original” (and “;;creative”)—and to locate different things each time, in order to fit constraints which have never been seen before (say, a design inside a complicated geometric region).

The Cambridge North stop utilizes a particular rule in the computational world to create what comes down to an attractive pattern.But it’s possible to also employ rules in the computational world for other activities in architecture.And it’s possible to even make a building by which everything—from overall massing lower to information on moldings—is completely based on something close one rule.

One might think that this type of building would in some way be minimalist and sterile.But the outstanding fact is this fact doesn’t need to be true—and that rather there are many wealthy, almost “;;organic” forms to become “;;mined” in the computational world.

Since I began covering one-dimensional cellular automata during the early 1980s, there’s been a variety of interesting art completed with them.Lots of various rules happen to be used.Sometimes they’ve been things i known as “;;class 4” rules which have an especially organic look.But frequently it’s been other rules—and rule 30 has certainly made its share of appearances—whether it’s on floors, shirts, tea cosies, kinetic installations,or, lately, mass-customized scarves (using the knitting machine really running cellular automaton):

CA art

However nowadays we’re celebrating a different and new symbol of rule 30. Created from permanent aluminum panels, within an ancient college town, a wonderful corner from the computational world adorns probably the most practical of structures: a little stop. My compliments towards the architects. May the things they’ve made give generations of rail travelers just a little peek at the wonders from the computational world.
