What’s Simulation Modeling (And Just How Do you use it)?

In the beginning from the U.S. patent system in 1790 until 1880, the Patent Office needed that every patent application be posted having a scale type of the invention. The models, usually made from wood by highly trained carpenters, gave the patent examiners something tangible to make use of when looking for the novelty of every patent idea.

The model requirement was repealed lengthy ago, but modeling has ongoing to experience a huge role in research, development, and innovation. Automobile makers, architects, and aircraft designers have lengthy used small-scale types of their ideas—partly to obtain a sense of the things they would seem like in “;real existence,” but in addition for researching the market and engineering testing, for example the rules of aerodynamics testing in wind tunnels.

However, physical designs include drawbacks. They’re frequently time-consuming and costly to make—an essential consideration when being first to promote by having an innovation often means the main difference between commercial failure and success. In addition, some models, being always smaller sized and lighter, might not behave exactly the same in testing his or her full-size counterparts, leading to bad data and fashions that do not perform to expectations.

Fortunately, advances in computer-aided design (CAD) software and computing devices performance have enabled using virtual models. Although objects be designed on the computer and displayed visually using three-dimensional graphics rendering, they may be tested in simulated physical conditions utilizing the same CAD software that they specified for.

Simulation in CAD

Simulation in CAD

The standard utilization of CAD software in systems development was concerned just with the shape and size of the object, whether a small part for any machine or perhaps a giant ship, aircraft, or building. But CAD software users, recognizing the need for simulation, started to demand the opportunity to test their virtual objects in virtual environments, and CAD software developers were pleased to oblige.

To be able to test an online object under problems that approximate the real life as carefully as you possibly can, simply understanding the shape and size from the object isn’t enough. You should also know its physical qualities, and you have to be in a position to represent these qualities within the computer model. Further, you should know how these qualities influence the performance from the object under test. Normally, this is completed with equations—that is, a mathematical type of the system’s behavior, to go together with the system’s shape, size, and material qualities.

For instance, when testing an online aircraft, it’s vital that you understand how the environment flowing round the wing generates lift. There exists a well-established body of mathematical equations to handle physics of airfoils, and they may be integrated into the CAD representation from the system. Further, the types of materials utilized in the wing are essential, simply because they figure out how heavy the wing is and just how it bends and flexes under load as well as in various situations, for example takeoff, landing, and turbulence. Thus, physical qualities for example coefficient of friction as well as other parameters that determine the effectiveness of the wing structure should also be integrated into the model.

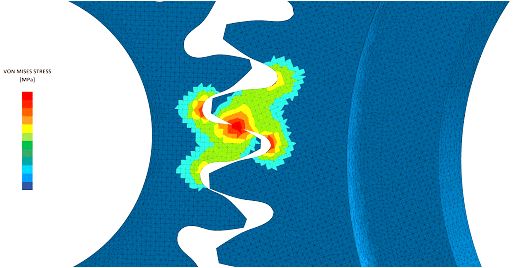

An essential method of simulation modeling in CAD is using finite element modeling (FEM). Physical phenomena are frequently explained complex equations which are impractical or impossible to resolve for each reason for an item. FEM addresses this issue by subdividing the item into small three-dimensional chunks CAD software enables meshing, the entire process of developing a 3D grid inside the resist define the subdivisions.

Who Uses Simulation Modeling

Using the mathematical model and meshing in position, model testing could be conducted with a number of simulated experiments under multiple virtual scenarios. In addition, the look could be tweaked and also the simulations re-run, that is frequently impractical related to a genuine system.

Who Uses Simulation Modeling?

Simulation modeling can be used in most engineering disciplines as well as in an extensive selection of industries in addition to academia. Listed here are a couple of examples:

  • Electrochemistry: Researchers in next-generation battery technology use simulation to create new micro- and nano-scale materials to improve battery capacity, reduce charging time, increase overall battery lifetime (charge-discharge cycles), while increasing battery safety.
  • Telecommunications: Designers of 5G telecom equipment use simulation for from designing base station antennas for optimum range to figuring out the position of base stations for optimum coverage to solving problems in supplying service in moving trains and. Designers also test new communications protocols by modeling base stations, cellular devices, and algorithms under various communication scenarios.
  • Geology: By comprehending the mathematical relationships among various soils, rocks, and undercover structures, geologists and seismologists may use simulation to calculate the results of various kinds of earthquakes on the quantity of surface trembling that will occur.
  • Optics: Engineers can simulate the optical qualities of materials—including so-known as metamaterials, that have nano-scale surface designs that alter their properties—to design and test new lenses along with other optical instruments for a lot of different applications.

Key Benefits of Simulation

It’s worth noting that simulation modeling isn’t restricted to designing and testing physical objects, although these applications lend themselves to modeling in CAD software. Business processes may also be modeled and simulated to check their performance. Using modeling and simulation, a company could possibly get solutions to questions for example:

  • The number of tech support team personnel should i staff? Should i temporarily add staff for any big affiliate marketing?
  • Basically give a shipping clerk to my logistics team, what effect does it dress in our order fulfillment performance?
  • When we give a products, can our manufacturing infrastructure handle the additional demand, or should i give a production line and personnel? Let’s say I delegate the development rather?
  • Basically automate a producing process, will the warehouse have the ability to absorb the extra products?

Key Advantages of Simulation

Simulation modeling—both in engineering and business disciplines—can realize numerous benefits for a corporation that utilizes it. The primary benefits are:

  • Shorter design and testing cycles: The opportunity to modify and re-test an online design means it’s not necessary to invest time (or money) building and testing multiple prototype iterations. You are able to choose a design that satisfies the needs in simulation before building a real prototype.
  • More (and much more realistic) test scenarios: With physical prototypes, it isn’t always easy to test all possible operating conditions. In simulation, however, there isn’t any practical limit towards the operating scenarios that may be modeled and tested.

Thus, simulation modeling has advantages over classical approaches, for example data analytics, forecasting, and optimization. These approaches are much more theoretical and derive from various assumptions about how exactly an item will behave. With simulation, its not necessary as numerous assumptions—with the correct mathematical model, you can test different scenarios and know just what the behavior is going to be.

Challenges in Simulation

Simulation modeling isn’t without its challenges, however. Should you not comprehend the limits of the model, you may be lulled right into a false feeling of security that all your simulation answers are 100% reliable. This could have disastrous results. Here are a few common difficulties with simulation:

Validity from the mathematical model: Some models, like the airfoil pointed out earlier, have well-defined equations that describe their behavior. In other situations, designers are breaking new ground out on another possess a sufficient body of fundamental research that to create a mathematical model. Within this situation, the equations might be based more about uncertainty along with a limited quantity of empirical data, instead of generalized physical relationships. In cases like this, the model validity could be questionable, and also the simulation results are affected from reduced reliability.

Garbage in, garbage out: Using incorrect parameters will clearly cause bad results. Too, in some instances an actual parameter isn’t a single number but a variety of values having a certain distribution. This variability should be correctly taken into account within the model.

Tradeoffs: For complex systems, especially individuals which are modeled with FEM, designers frequently must decide concerning the tradeoff between precision and time or computing power. Very detailed models may need longer and computing power for simulation than is instantly available. That stated, cloud-computing is making additional computing power available at reasonable prices for simulation tasks.

How can companies overcome these challenges? In addition to the computing power issue, the longevity of the simulation results depends upon proper validation and accreditation from the model. Fortunately, there’s an increasing body of understanding on the best way to build simulation models and conduct model verification, and experts in simulation modeling might help make certain confirmed model is determined in sufficient detail to complement reality as carefully as you possibly can.

As CAD along with other simulation software programs reduction in cost and be simpler to make use of, simulation modeling has become an important tool in companies over the commercial landscape. In case your organization isn’t already using simulation modeling in certain facet of its operations, odds are good it will likely be soon.
